Precision Machined End Stop Bracket
Tianjin TGE BIAM Graphene Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of precision machined end stop bracket in China. Welcome to buy bulk durable precision machined end stop bracket in stock here from our factory. If you have any enquiry about customized service and quotation, please feel free to email us.
Product Introduction

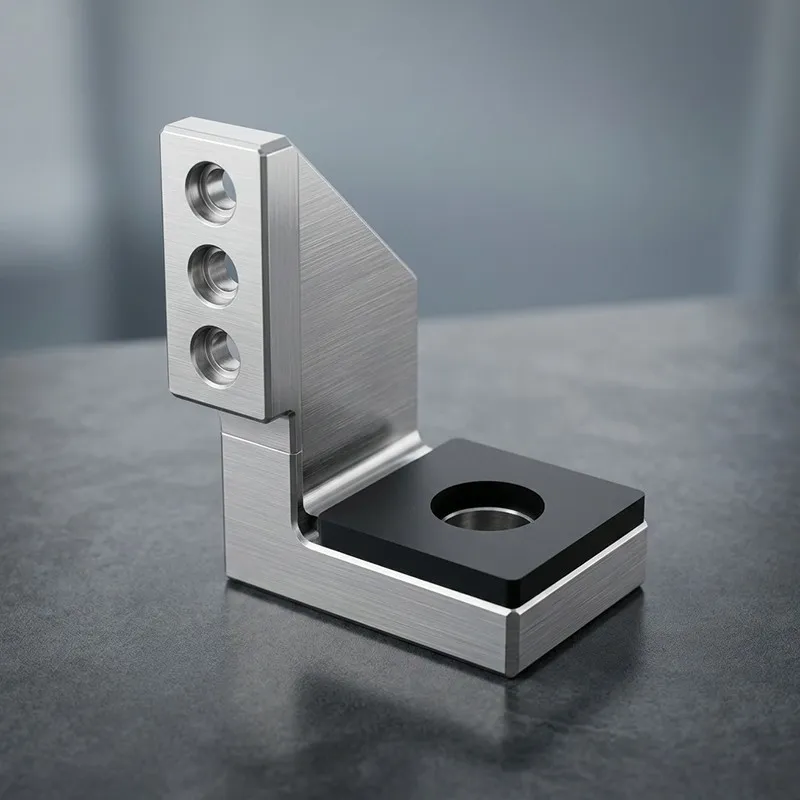

When end-of-travel positioning must align with optical sensors or mechanical datums, every minor scale matters. The Precision Machined End Stop Bracket is designed for such applications, featuring a fully machined metal housing with a precisely located elastomeric pad. It serves metrology instruments, laser machining heads, and medical diagnostic modules, where even a slight offset can compromise system accuracy.
Introduction to Performance
Metal housing tolerance is held to ±0.02 mm on critical locating features, with flatness and parallelism within 0.01 mm. The elastomeric impact face-custom-formulated from low-creep rubber-has a compression set below 10% to maintain contact geometry.
Introduction to Processing Techniques and Materials
TGE Precision Machined End Stop Bracket: Metal of aluminum or steel frame is machined using CNC centers. The rubber-to-metal bonding employs a thin-film adhesive cured in a precision mold that ensures bond-line thickness uniformity.
Typical Applications
Precision Machined End Stop Brackets can be applied in optical linear stage hard stops, wafer probe station X-Y limits, and laser engraver gantry references.
Advantages
At TGE, we provide full dimensional inspection reports and can laser-etch serial numbers for traceability. We offer customers rapid prototyping service, and we can deliver functional samples for customer's validation.
FAQ
Q: What is your MOQ? Can I mix different styles to a start order?
A: The MOQ of PO is usually 100pcs, however it depends – it can be less than 100 pcs in some special cases. We can have a meeting to clarify if you need.
Q: How do you ensure the product quality?
A: We have QA and QC for metal insert and rubber material performance, as well as the process quality of bonding between the metal and rubber. Our quality system is ISO9001 certified, and have passed multiple leading companies' audits both in China and Europe.
So far, we have shipped more than 1 million pieces of bonded valve cores for global customers from Asia to Europe in the past years, and have gained high reputation.
