Rail End Stop Bracket
Tianjin TGE BIAM Graphene Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rail end stop bracket in China. Welcome to buy bulk durable rail end stop bracket in stock here from our factory. If you have any enquiry about customized service and quotation, please feel free to email us.
Product Introduction

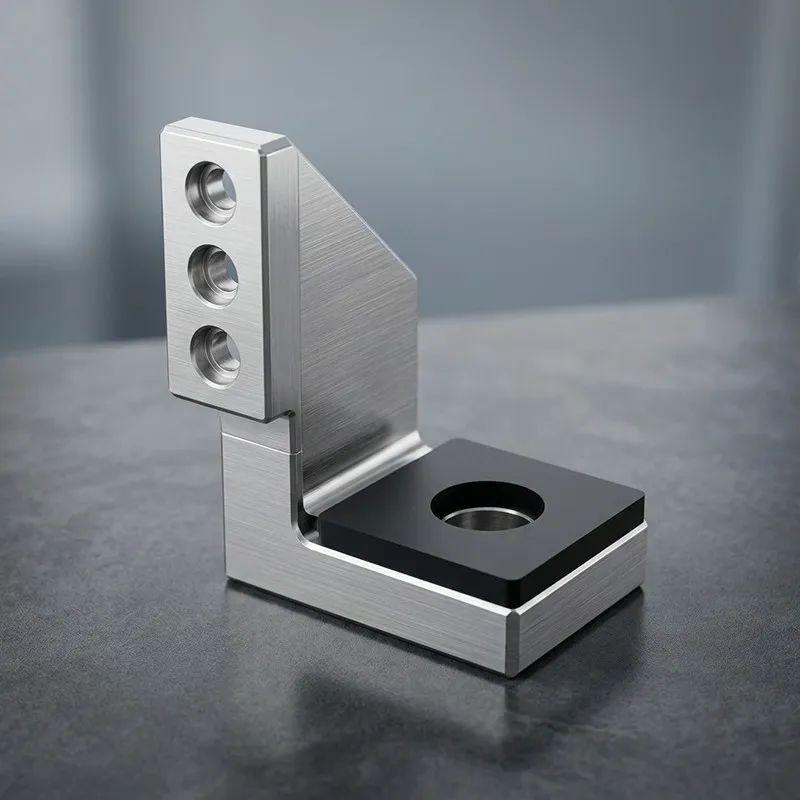

Linear guide rails, overhead conveyors, and precision monorails require end stops that maintain exact positioning while gently halting the carriage. Our Rail End Stop Bracket integrates a precision-machining metal locating surface with a resilient elastomer bumper, ensuring that the final carriage position repeats to within a defined limit. It is designed for automated assembly lines, robot seventh-axis rails, and high-speed picking systems.
Introduction to Performance
The metal base is machined to dimensional tolerances no more than ±0.02 mm, providing a reliable reference face for rail alignment. The elastomer insert-typically a 70~80 Shore A polyurethane-delivers a consistent stop position even after thousands of impacts, with axial compression set under 10%.
Introduction to Processing Techniques and Materials
TGE Rail End Stop Bracket: Metal parts are CNC machined from aluminum or steel, followed by surface finishing to ensure precision seating. The PU bumper is molded or bonded through our validated adhesive process.
Typical Applications
Semiconductor wafer handling robots, linear motor gantry systems, automated optical inspection rails, and warehouse shuttle monorails. Frequently specified by factory automation integrators who demand high level of repeatability.
Advantages
Our flexible batch sizes accommodate both pilot runs and mass production. Engineering support includes material selection and structure design optimization.
FAQ
Q: What is your MOQ? Can I mix different styles to a start order?
A: The MOQ of PO is usually 100pcs, however it depends – it can be less than 100 pcs in some special cases. We can have a meeting to clarify if you need.
Q: If I don't know a specific kind of product I need, what should I do?
A: Don't worry. You just need to provide us operation conditions such as "working pressure", "temperature" and "media", etc., then, we can suggest the most suitable product to you.
