Low Temperature Brittleness: Preventing Catastrophic Seal Failure in Extreme Cold



Welcome to our three-part technical series on Low Temperature Rubber Performance for industrial sealing applications. This series is written specifically for purchasing engineers, sealing design engineers, and technical professionals working with railway braking systems, pneumatic control valves, and metal-bonded valve cores.









In the first two articles of this series, we examined Tg (Glass Transition Temperature) and TR10 (Temperature Retraction at 10%)-two indicators that describe rubber flexibility and recovery at low temperatures. The third critical parameter, Low Temperature Brittleness, addresses a different failure mode: catastrophic cracking under impact or deformation.



Understanding brittleness temperature is essential for preventing seal damage during installation, handling in cold environments, and surviving unexpected extreme temperature events in railway and industrial applications.





Low Temperature Brittleness (typically measured per ASTM D746 or ISO 812) refers to the temperature at which rubber fractures when subjected to impact under controlled laboratory conditions. In the standard test:

• Rubber specimens are conditioned at a series of low temperatures

• A specified impact energy is applied to the specimen

• The temperature at which 50% of specimens exhibit brittle failure is recorded as the brittleness temperature



This property evaluates crack resistance rather than elasticity or recovery. A material may have good TR10 values (indicating good recovery when slowly warmed) but still be susceptible to impact cracking at very low temperatures.





While brittleness temperature is sometimes considered less important than Tg or TR10 for continuous sealing performance, it is critical for several real-world scenarios:





Seals are often installed in cold environments, especially during winter maintenance or in unheated facilities. If the rubber is below its brittleness temperature during installation, simple stretching or pressing into the gland can cause micro-cracks that propagate into leaks during service.

In many valve core applications, engineers prioritize TR10 because sealing reliability depends on the rubber's ability to recover after compression rather than simply remaining above its glass transition temperature. A material might be above Tg but still recover too slowly to maintain sealing force under dynamic conditions.





Components may be exposed to extreme cold during shipping or warehouse storage. A seal that becomes brittle during transport can crack when unpacked or installed, even if it would function properly at operating temperature.





Valve components experience sudden pressure surges and dynamic movement. In very cold conditions, pressure spikes can create impact-like loading that causes brittle fracture in susceptible materials.





Railway braking systems must safely withstand temperatures significantly below normal operating ranges. Even if a seal functions adequately at -40°C, it must not shatter if exposed to a -55°C cold snap during a prolonged winter stop.





These three indicators describe different aspects of low-temperature behavior, and they do not always correlate perfectly:

• Tg describes the onset of stiffening at the molecular level

• TR10 describes the temperature where meaningful elastic recovery occurs

• Brittleness temperature describes where fracture occurs under impact



For most rubber compounds, the temperatures follow this pattern: Tg < TR10 < Brittleness Temperature. In other words, a material becomes glassy first, then fails to recover properly, then finally becomes susceptible to impact cracking as temperature continues to drop.



However, the gaps between these temperatures vary significantly by polymer type and formulation. Some compounds may have a wide "safe operating window" between TR10 and brittleness, while others may transition quickly from functional to brittle.





Different rubber families exhibit characteristic brittleness behavior:

• Standard NBR: Brittleness temperature typically -30°C to -45°C, depending on ACN content

• Low-temperature optimized NBR: Can achieve brittleness temperatures below -60°C with proper formulation

• HNBR: Typically -40°C to -50°C for standard grades, specialty grades lower

• EPDM: Excellent low-temperature brittleness resistance, often below -60°C

• FKM: Generally poor brittleness resistance, often -15°C to -30°C for standard grades



Material	Typical Tg	Typical TR10	Oil Resistance	Cost
Standard NBR	-25 to -40°C	-20 to -35°C	Excellent	Low
TGE Optimized Low-Temperature NBR	-60°C	-50°C	Excellent	Medium
Standard HNBR	-35 to -45°C	-30 to -40°C	Excellent	High
Standard EPDM	-55°C	-50°C	Poor	Medium
Standard FKM	-10°C	-5°C	Excellent	Very High







Like Tg and TR10, low-temperature brittleness depends far more on compound formulation than on polymer family alone. Key formulation factors include:

Polymer Selection:

Within each polymer family, specific grades with lower crystallinity and better low-temperature flexibility are available. For NBR, lower ACN content generally improves low-temperature properties but reduces oil resistance-this balance must be carefully optimized.



Plasticizer Systems

Proper selection and loading of ester plasticizers is critical for achieving low brittleness temperatures in NBR and other polar polymers. The plasticizer must remain compatible and not extract out in service fluids.



Curing System

Crosslink density and cure type affect low-temperature flexibility. Properly optimized cure systems balance low-temperature properties with compression set and heat resistance.



Filler Selection

Carbon black type and loading, as well as non-black fillers, influence low-temperature crack resistance. Highly reinforced compounds may have poorer brittleness resistance if not properly formulated.





While Tg, TR10, and brittleness temperature are the "big three" low-temperature indicators, engineers should also evaluate these complementary properties:

• Compression Set: A lower compression set helps maintain sealing force after long-term compression at low temperatures

• Elastic Recovery: Higher resilience improves repeated sealing cycles and dynamic response

• Dynamic Fatigue Resistance: Critical for valve cores subjected to continuous movement and pressure cycling

• Ozone and Weather Resistance: Essential for outdoor railway equipment exposed to cold, dry air

• Rubber-to-Metal Bond Retention: Even the best rubber compound will fail if the bond separates during thermal cycling





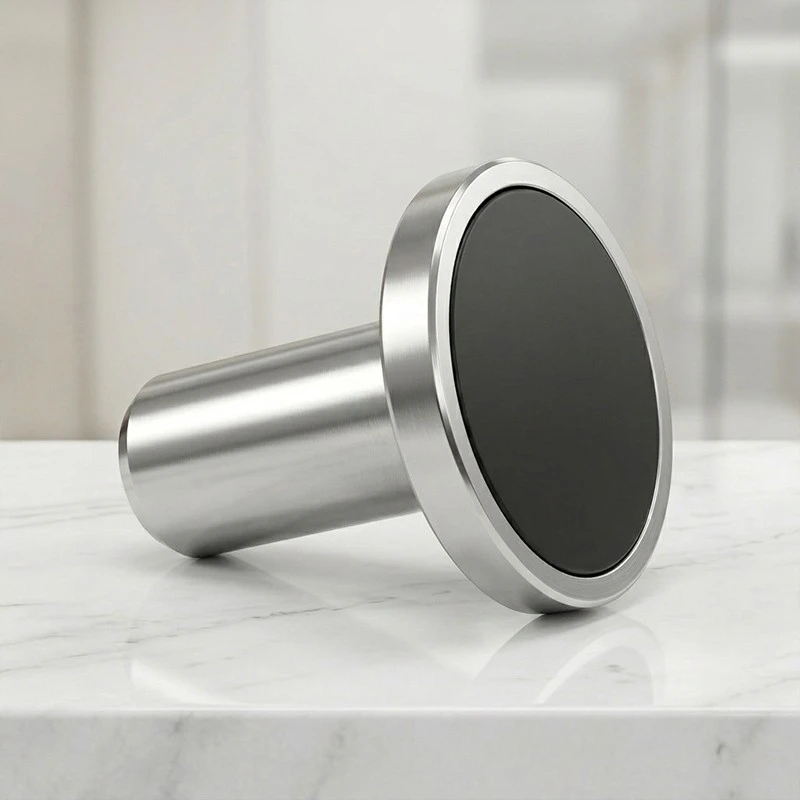

Even if the rubber compound exhibits excellent low-temperature properties across Tg, TR10, and brittleness testing, overall valve reliability also depends on the integrity of the rubber-to-metal bond.



Differential thermal contraction between rubber and metal creates stress at the bond interface during temperature changes. Poor bonding may lead to:

• Separation during thermal cycling or pressure changes

• Leakage paths along the metal insert

• Reduced service life and unpredictable failure modes

• Increased maintenance costs and warranty claims



For railway applications, both compound formulation and bonding technology should be validated together through thermal cycling and pressure fatigue testing.





When comparing seal suppliers for low-temperature applications, use this comprehensive checklist:



• What is the TR10 value of the production compound (not just generic datasheet values)?
• What is the Glass Transition Temperature by DSC or DMA?
• What is the Low Temperature Brittleness temperature per ASTM D746?
• Which ISO/ASTM standards were used for all testing?
• Can the supplier provide compression set data after low-temperature aging?
• Have low-temperature properties been tested after fluid aging and heat exposure?
• Has the metal-to-rubber bond been validated through thermal cycling and pressure fatigue testing?
• What is the field track record in similar low-temperature applications?





Low-temperature sealing performance is far more complex than a single temperature rating. A holistic approach requires understanding all three key indicators:



• Glass Transition Temperature (Tg) explains molecular-level stiffening behavior

• TR10 evaluates practical elastic recovery and sealing force maintenance

• Low Temperature Brittleness measures impact crack resistance and survival during extreme conditions



Together, these indicators help engineers predict sealing performance in demanding railway environments. For rubber-to-metal bonded valve cores, combining an optimized rubber formulation with reliable bonding technology is essential for long-term durability and safe operation.



Material selection should always consider the complete operating environment rather than relying on a single property. Through advanced formulation technology, even standard polymer families like NBR can be engineered to deliver exceptional low-temperature performance that rivals or exceeds more expensive specialty elastomers.



---
